Max Speed
Printing
Max Width
Gearless Direct Drive

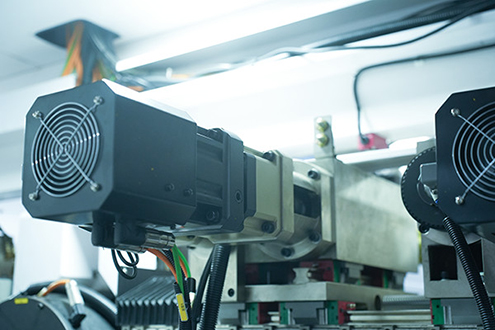

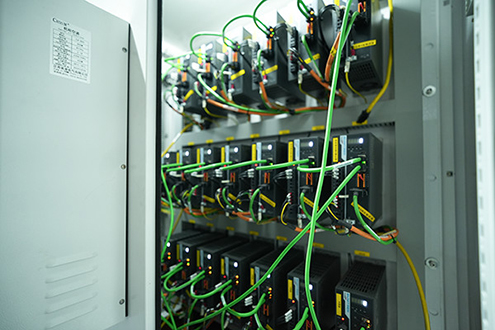

Independent servo motors for precise registration
Auto Registration

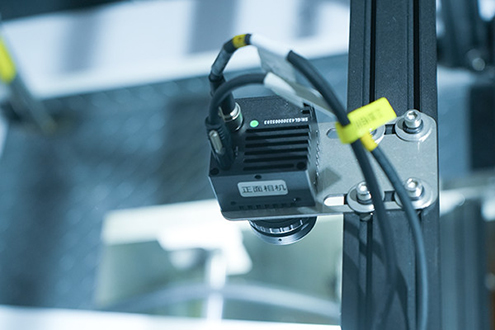

Camera-based perfect color alignment
Quick Job Change
Fast sleeve change minimizes downtime
Energy Efficient

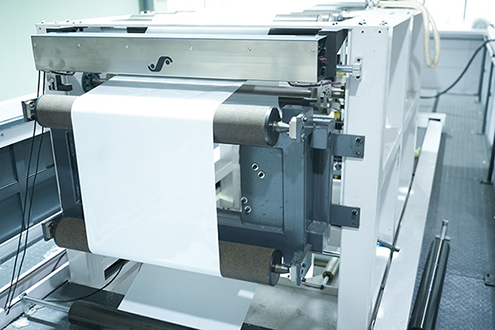

Advanced drying reduces power consumption
The Master Series YTE-800mm is a fully servo central impression (CI) satellite flexographic press, engineered for high-speed printing on heavy-duty FFS film (Form-Fill-Seal) and industrial PE films in roll form, with a maximum printing width of 760 mm.

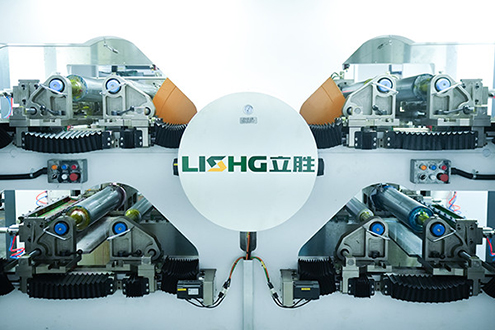

The central drum maintains controlled tension on thick films — essential for heavy PE film used on FFS lines. Four servo printing units, automatic register control and ±0.08 mm accuracy deliver stable runs for cement bags, fertilizer packaging and industrial applications.
Up to 350–400 m/min on FFS film in roll form — industrial productivity and precise graphics for Form-Fill-Seal conversion.
Water-based or solvent inks depending on the FFS film. On-site installation, operator training and technical support for converters in North Africa.
The YTE-800mm covers the main FFS markets in industrial flexographic printing:
| Parameter | Specification |
|---|---|
| Model | YTE-800mm |
| Printing colors | 4 colors |
| Maximum printing width | 760 mm |
| Mechanical speed | 420 m/min |
| Maximum printing speed | 350 – 400 m/min (depending on materials and printed designs) |
| Material | FFS |
| Maximum print length (repeat) | 400 – 800 mm |
| Print cylinder | Sleeve type |
| Ceramic anilox roll | Sleeve type |

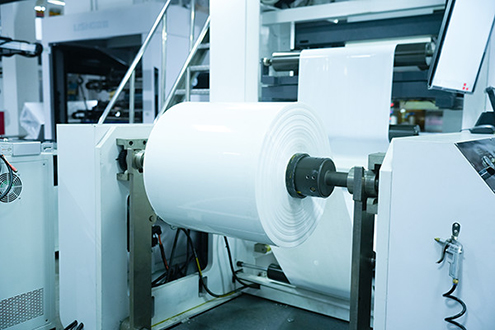

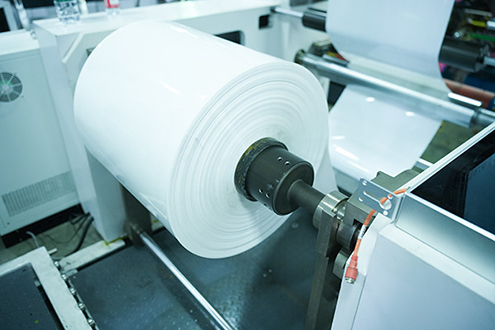

| Unwind / Rewind max. dia. | Φ800 mm |
| Double-sided tape thickness | 0.38 mm |
| Plate thickness | 1.7 mm / 1.14 mm / 2.84 mm / 2.28 mm — or custom |
| Registration accuracy | ±0.08 mm |
| Heating method | Electric heating |
| Ink | Water-based ink or solvent ink |
| Power supply | 380 V, 3-phase, 50 Hz / 60 Hz |

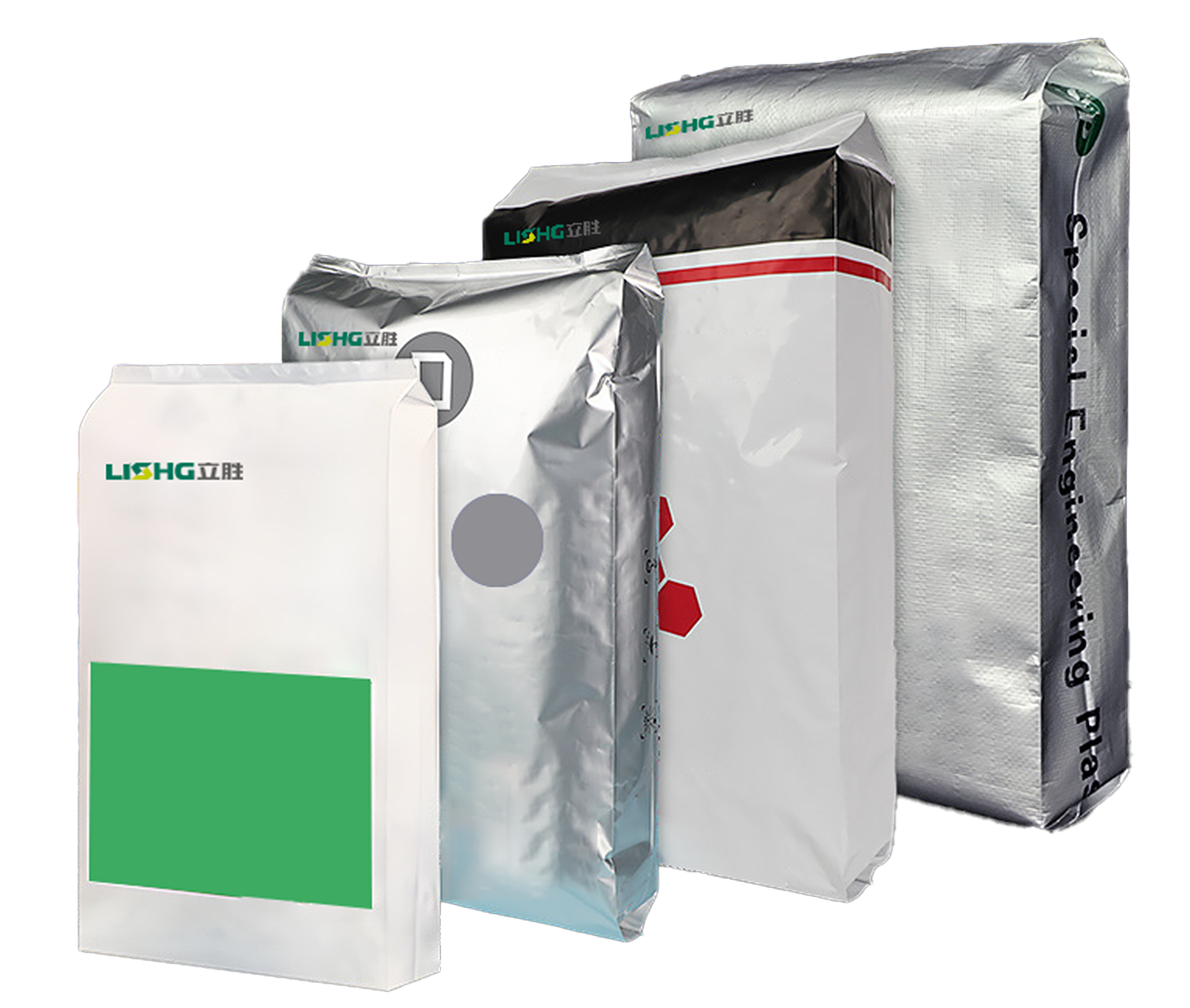

Print results on heavy PE FFS film and industrial packaging with the Master Series YTE-800mm.
We support FFS film converters across North Africa from delivery through to full production.
Every project includes on-site installation, operator training and access to technical support and spare parts.
We regularly serve customers in the following countries:
Maghreb
Morocco Algeria Tunisia Libya Mauritania
Other North African countries
Egypt Sudan
A CI satellite flexographic press uses a central printing drum to deliver excellent web stability, high print accuracy and consistent quality for heavy FFS film and flexible packaging printing in roll form.
The CI flexographic press can print heavy PE FFS film, tubular film, HDPE, LDPE, co-extruded film and other plastic films used in flexible packaging and Form-Fill-Seal lines.
Mechanical speed reaches 420 m/min. In actual FFS film printing conditions, maximum speed is 350–400 m/min depending on materials and printed designs.
Full servo gearless technology improves print accuracy on plastic film, reduces mechanical errors, simplifies control of each printing unit and increases production stability on this CI flexographic press.
This CI flexographic press is suited to printing heavy PE film for cement bags, fertilizer and industrial FFS packaging, as well as tubular and co-extruded film in roll form. Typical thickness: 60–200 μm and above depending on application.
Yes. We provide installation, commissioning, operator training and technical support for customers in Morocco, Algeria, Tunisia, Libya, Mauritania, Egypt and Sudan.
LISHG is a Chinese manufacturer specializing in CI flexographic presses, offering high-precision printing solutions for heavy FFS film and flexible packaging for the packaging industry.
