Max Speed
Printing
Max Width

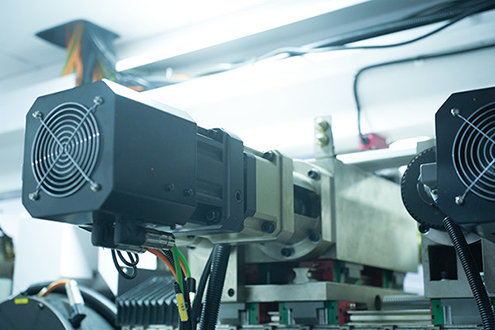

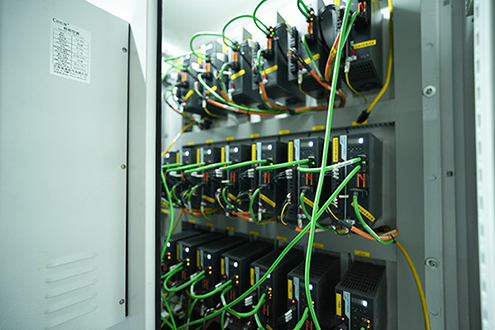

Gearless Direct Drive
Independent servo motors for precise registration

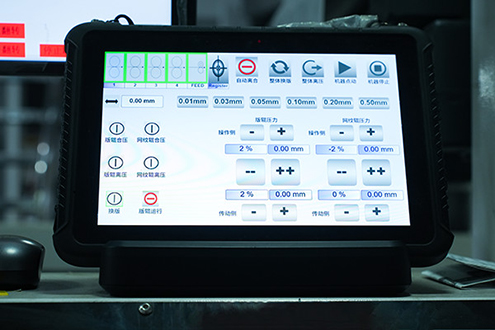

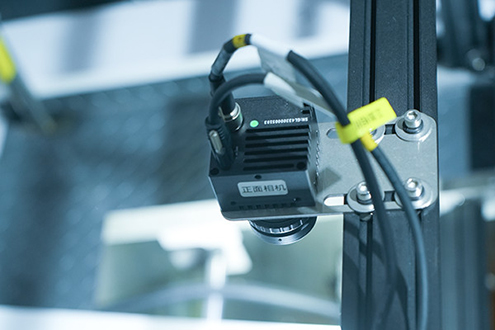

Auto Registration
Camera-based perfect color alignment
Quick Job Change
Fast sleeve change minimizes downtime
Energy Efficient
Advanced drying reduces power consumption

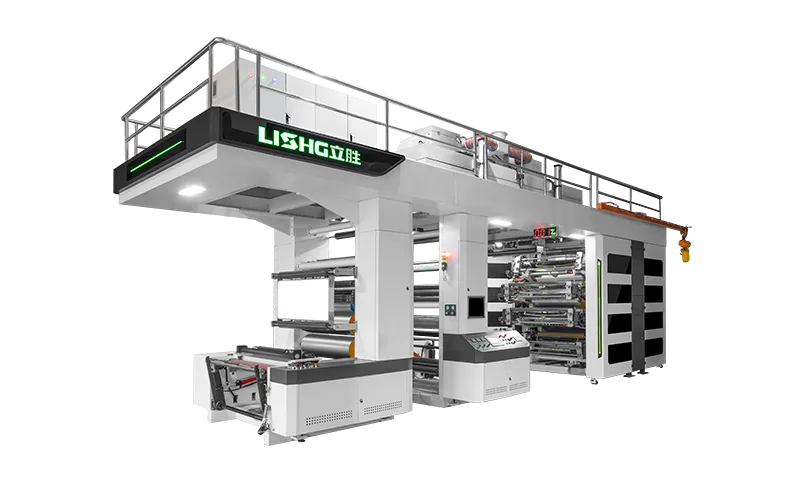

The YTD-8 is an 8-color central impression (CI) flexographic press, available in multiple feed widths from 600 to 1400 mm, for printing on plastic films, non-woven materials and breathable films in roll form.
The central drum maintains stable web tension. Eight printing units, automatic register control and ±0.15 mm accuracy (longitudinal and lateral) deliver consistent production on PE, PET, BOPP, PVC, nylon, non-woven and breathable film with water-based or solvent ink.
Maximum printing speed of 250 m/min — industrial productivity and consistent quality on flexible packaging.
Standard print repeat of 400 mm, customizable from 380 to 800 mm. On-site installation, operator training and technical support for printers across North Africa.
The YTD-8 is suited to common flexible packaging printing applications:
| Parameter | Specification |
|---|---|
| Model | YTD-8 |
| Print colors | 8 colors |
| Feed width | 600 mm / 800 mm / 1000 mm / 1200 mm / 1400 mm |
| Maximum print width | 560 mm / 760 mm / 960 mm / 1160 mm / 1360 mm |
| Materials | PE, PET, BOPP, PVC, Nylon, Non-woven, Breathable film |
| Plate thickness | 1.14 mm / 1.7 mm / 2.28 mm / 2.84 mm / 3.94 mm (customizable) |
| Print repeat | Standard: 400 mm, customizable 380–800 mm |
| Maximum printing speed | 250 m/min |
| Register accuracy | Longitudinal: ±0.15 mm · Lateral: ±0.15 mm |
| Structure type | Central impression (central drum) |
| Gear model | 1.5 mm |
| Heating method | Electric heating |
| Maximum oven temperature | Max 80 °C (ambient temperature 20 °C) |

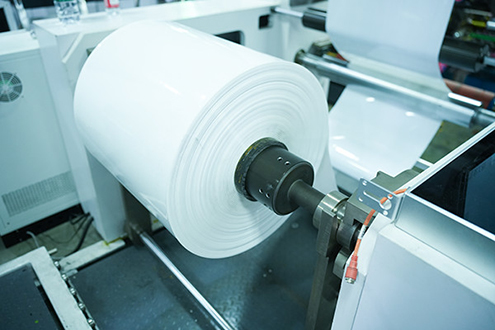

| Unwind / Rewind core | 3" core |
| Maximum unwind / rewind diameter | 1000 mm |
| Applicable ink | Water-based ink / Solvent ink |
* Custom specifications available on request
Example of print quality produced on the YTD-8 across different flexible packaging substrates.
We support printers across North Africa from delivery through to full production.
Every project includes on-site installation, operator training and access to technical support and spare parts.
We regularly serve customers in the following countries:
Maghreb
Morocco Algeria Tunisia Libya Mauritania
Other North African countries
Egypt Sudan
The YTD-8 is available in 600, 800, 1000, 1200 and 1400 mm feed widths, with corresponding maximum print widths of 560, 760, 960, 1160 and 1360 mm.
The YTD-8 can print PE, PET, BOPP, PVC, nylon, non-woven, breathable film and other substrates used in flexible packaging printing in roll form, with water-based or solvent ink.
The maximum printing speed of the YTD-8 is 250 m/min.
Register accuracy is ±0.15 mm longitudinal and ±0.15 mm lateral.
The standard print repeat is 400 mm, customizable from 380 to 800 mm depending on the print design.
Yes. We provide installation, commissioning, operator training and technical support for customers in Morocco, Algeria, Tunisia, Libya, Mauritania, Egypt and Sudan.
LISHG is a Chinese manufacturer specializing in CI flexographic presses, offering high-precision flexographic printing solutions for the flexible packaging industry.
