Max Speed
Printing
Max Width
Gearless Direct Drive
Independent servo motors for precise registration
Auto Registration
Camera-based perfect color alignment
Quick Job Change
Fast sleeve change minimizes downtime
Energy Efficient
Advanced drying reduces power consumption

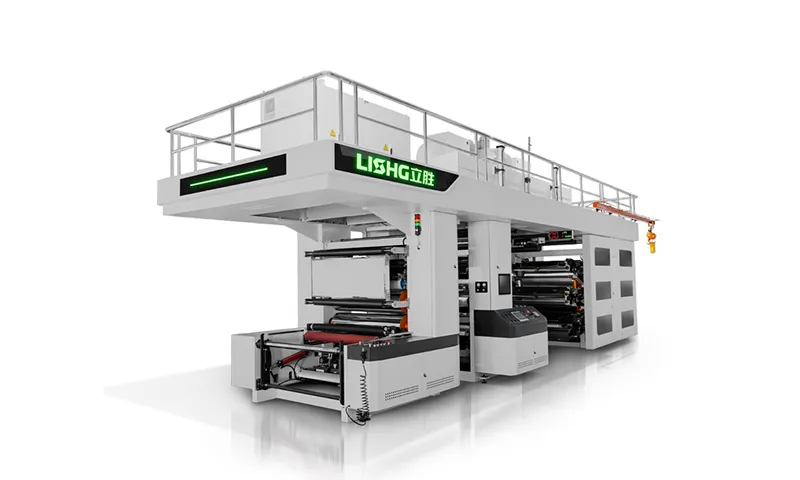

The YTD-6 Color is a 6-color central impression (CI) flexographic press from the Apex Series, available in multiple feed widths from 600 to 1400 mm, for printing on films, PVC membrane, non-woven film and non-woven fabric in roll form.
The central drum maintains stable web tension. Six printing units, automatic register control and ±0.15 mm accuracy (longitudinal and lateral) deliver consistent production on PE, PET, BOPP, PVC membrane, non-woven film and non-woven fabric with solvent-based ink.
Maximum printing speed of 250 m/min — industrial productivity and consistent quality on flexible packaging substrates.
Standard print repeat of 400 mm, customizable from 380 to 800 mm. On-site installation, operator training and technical support for printers across North Africa.
The YTD-6 Color is suited to flexible packaging and technical substrate printing:
| Parameter | Specification |
|---|---|
| Model | YTD-6 Color |
| Print colors | 6 colors |
| Feed width | 600 mm / 800 mm / 1000 mm / 1200 mm / 1400 mm |
| Maximum print width | 560 mm / 760 mm / 960 mm / 1160 mm / 1360 mm |
| Materials | PE, PET, BOPP, PVC membrane, non-woven film, non-woven fabric |
| Plate thickness | 1.14 mm / 1.7 mm / 2.28 mm / 2.84 mm / 3.94 mm (customizable) |
| Print repeat | Standard: 400 mm, customizable 380–800 mm |
| Maximum printing speed | 250 m/min |
| Register accuracy | Longitudinal: ±0.15 mm · Lateral: ±0.15 mm |
| Structure type | Central impression (central drum) |
| Gear model | 1.5 mm |
| Heating method | Electric heating |
| Maximum oven temperature | Max 80 °C (ambient temperature 20 °C) |
| Unwind / Rewind core | 3" core |
| Maximum unwind / rewind diameter | 1000 mm |
| Applicable ink | Solvent-based ink |
* Custom specifications available upon request
Examples of print quality produced on the YTD-6 Color on paper and film substrates.
We support printers across North Africa from delivery through to full production.
Every project includes on-site installation, operator training and access to technical support and spare parts.
We regularly serve customers in the following countries:
Maghreb
Morocco Algeria Tunisia Libya Mauritania
Other North African countries
Egypt Sudan
The YTD-6 Color is available in 600, 800, 1000, 1200 and 1400 mm feed widths, with corresponding maximum print widths of 560, 760, 960, 1160 and 1360 mm.
The YTD-6 Color can print PE, PET, BOPP, PVC membrane, non-woven film and non-woven fabric in roll form, with solvent-based ink.
The maximum printing speed of the YTD-6 Color is 250 m/min.
Register accuracy is ±0.15 mm longitudinal and ±0.15 mm lateral.
The standard print repeat is 400 mm, customizable from 380 to 800 mm depending on the print design.
Yes. We provide installation, commissioning, operator training and technical support for customers in Morocco, Algeria, Tunisia, Libya, Mauritania, Egypt and Sudan.
LISHG is a Chinese manufacturer specializing in CI flexographic presses, offering high-precision flexographic printing solutions for the flexible packaging industry.
