Max Speed
Printing
Max Width
Gearless Direct Drive

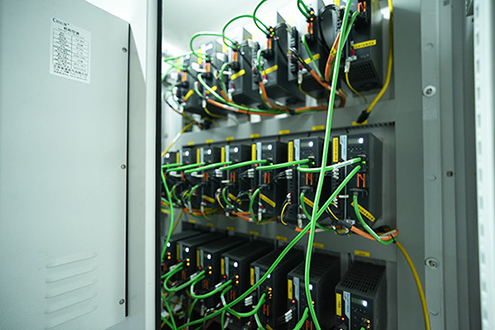

Independent servo motors for precise registration

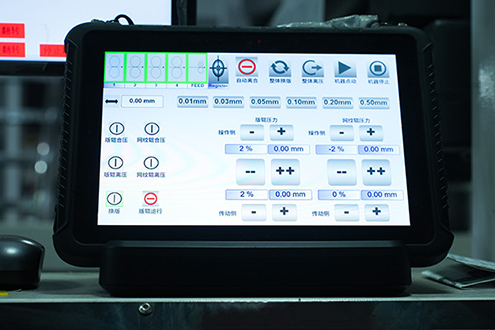

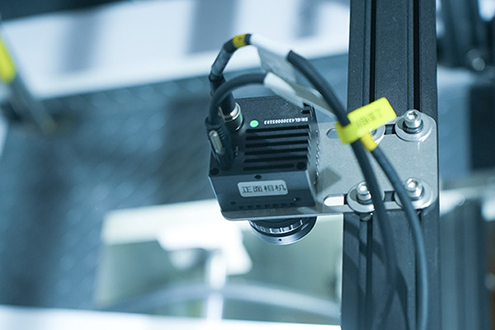

Auto Registration
Camera-based perfect color alignment
Quick Job Change
Fast sleeve change minimizes downtime
Energy Efficient
Advanced drying reduces power consumption
The YTD-4+4 is a central impression (CI) flexographic press in a 4+4 color configuration, engineered for printing on PP woven fabric in roll form, with a material feed width of 800 mm and a maximum print width of 760 mm.

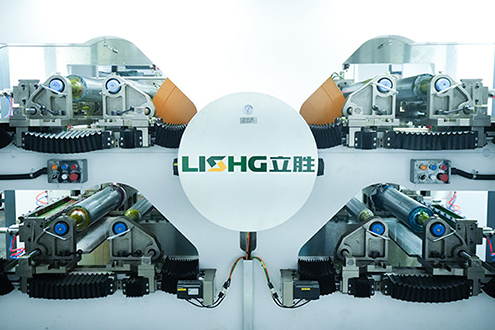

The central drum maintains stable web tension. Eight printing units (4+4), automatic register control and ±0.15 mm accuracy (longitudinal and transversal) deliver two-sided or multicolor printing on woven PP sacks.
Maximum printing speed of 300 m/min — high throughput for cement bags, fertilizer sacks and industrial PP woven packaging.
Water-based or solvent inks. Standard print repeat of 400 mm, customizable from 380 to 800 mm. On-site installation, operator training and technical support for converters across North Africa.
The YTD-4+4 is specialized for flexographic printing on polypropylene woven fabric:
| Parameter | Specification |
|---|---|
| Model | YTD-4+4 |
| Colors | 4+4 colors |
| Material feeding width | 800 mm |
| Maximum print width | 760 mm |
| Material | PP woven fabric |
| Plate thickness | 1.14 mm / 1.7 mm / 2.28 mm / 2.84 mm / 3.94 mm (customizable) |
| Print length (repeat) | Standard: 400 mm, customizable 380–800 mm |
| Maximum printing speed | 300 m/min |
| Register precision | Longitudinal: ±0.15 mm · Transversal: ±0.15 mm |
| Structure type | Central impression (central drum) |
| Gear module | 1.5 mm |
| Heating method | Electric heating |
| Maximum oven temperature | Max 80 °C (room temperature 20 °C) |
| Unwind / Rewind core | 3" core |
| Maximum unwind / rewind diameter | 1500 mm |
| Suitable ink | Water-based ink / Solvent ink |
* Custom specifications available on request
Example of print quality produced on the YTD-4+4, on PP woven fabric.
We support converters across North Africa from delivery through to full production.
Every project includes on-site installation, operator training and access to technical support and spare parts.
We regularly serve customers in the following countries:
Maghreb
Morocco Algeria Tunisia Libya Mauritania
Other North African countries
Egypt Sudan
The 4+4 configuration includes eight printing units arranged as two sets of four colors, enabling two-sided or double-face printing on PP woven fabric in roll form.
The YTD-4+4 is designed for PP woven fabric used in cement bags, fertilizer sacks, FIBC big bags and industrial woven packaging.
The maximum printing speed of the YTD-4+4 is 300 m/min.
Register precision is ±0.15 mm longitudinal and ±0.15 mm transversal.
The YTD-4+4 accepts water-based and solvent inks, depending on the PP woven fabric and application requirements.
Yes. We provide installation, commissioning, operator training and technical support for customers in Morocco, Algeria, Tunisia, Libya, Mauritania, Egypt and Sudan.
LISHG is a Chinese manufacturer specializing in CI flexographic presses, offering dedicated solutions for PP woven fabric in the sack and industrial packaging industry.
