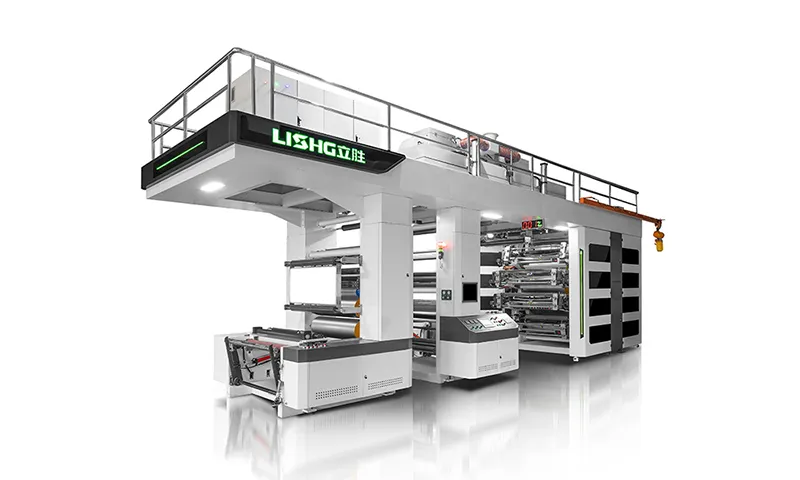

CI Flexo Printing Process Paper Bag Printing
Ultra Serfes
Paper

CI Flexo Printing Process Paper Bag Printing

The engine uses high-strength alloy cast iron with low vibration, resin sand casting, and vibration aging treatment.
Integrated guide roller structure.
Layered design construction.
Engine thickness: 100mm.
Guide roller diameter: φ100mm (anodized surface treatment).
150m/min

Max Speed

6 Colors

Printing

1600mm

Max Width

Online Inquiry Whastapp
Key Features
Gearless Direct Drive Gearless Direct Drive

Independent servo motors for precise registration

Auto Registration Auto Registration

Camera-based perfect color alignment

Quick Job Change Quick Job Change

Fast sleeve change minimizes downtime

Energy Efficient Energy Efficient

Advanced drying reduces power consumption

Product Details

Printing Group

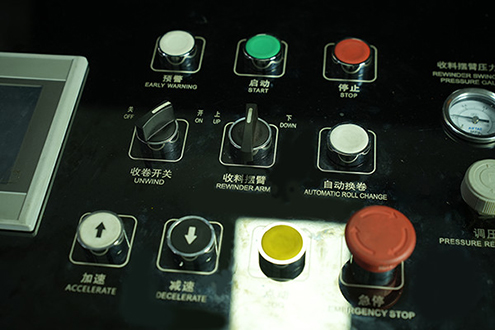

Console

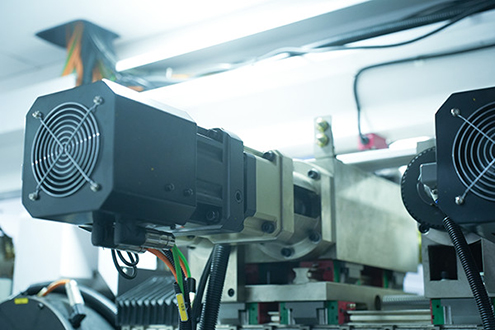

Drive Motor

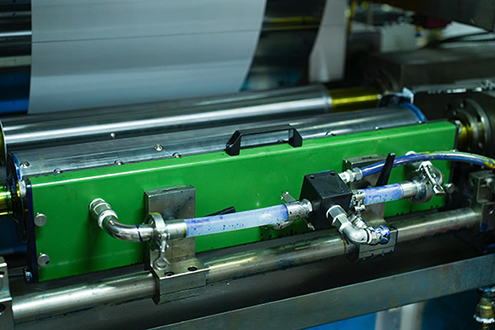

Ink Port

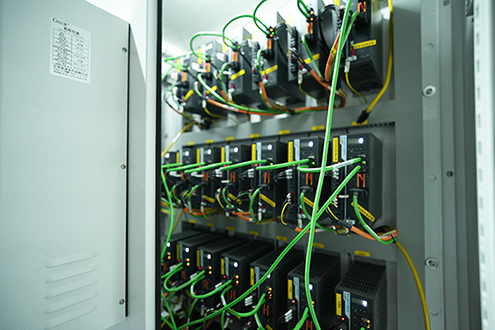

Motor Box

Oven

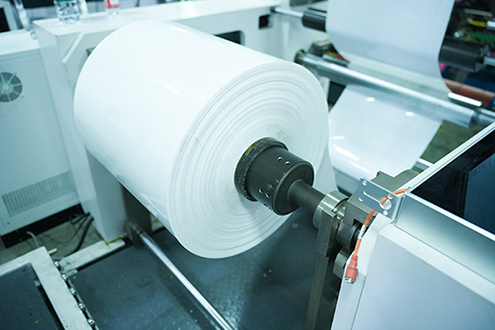

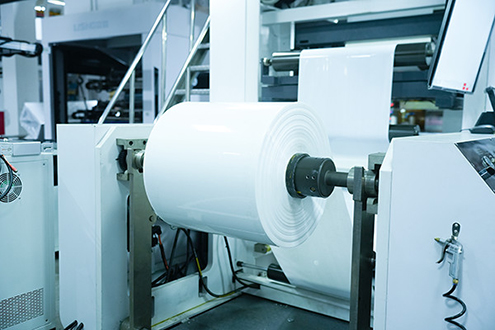

Unwinding

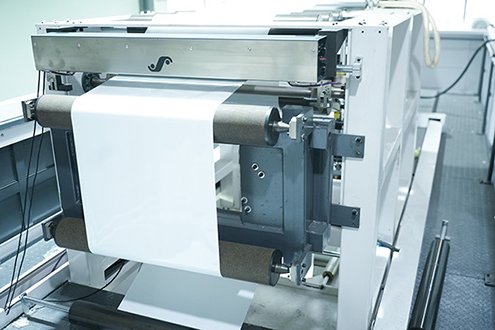

Roll Up

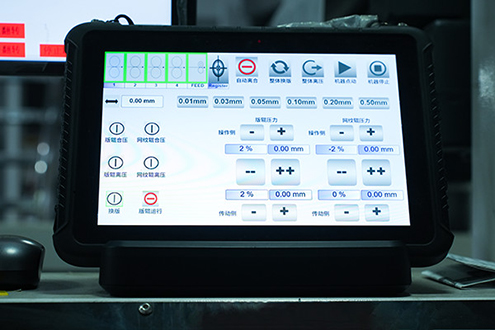

Tablet

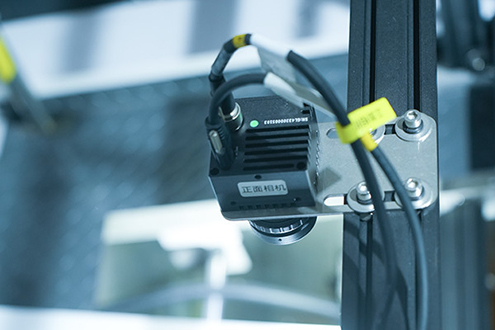

Camera

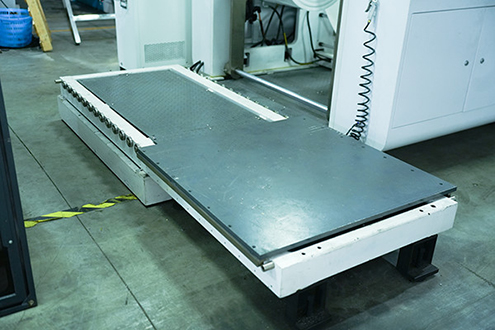

Skateboard
Printing Group
Console
Drive Motor
Ink Port
Motor Box
Oven
Unwinding
Roll Up
Tablet
Camera
Skateboard
Technical Parameters
Item YTD-4 6 8 Color
Feeding Width 600mm, 800mm, 1000mm, 1200mm, 1400mm
Max Printing Area 560mm, 760mm, 960mm, 1160mm, 1360mm
Design 4 6 8 colors
Materials PE PET BOPP PVCMembrane Non-woven Fabric Breathable Film
Plate Thickness 1.14mm, 1.7mm, 2.28mm, 2.84mm, 3.94mm (customizable)
Printing Theme Standard: 400mm, customizable 380-800mm
Max Printing Speed 250m/min
Registration Accuracy Longitudinal: ±0.15mm, Lateral: ±0.15mm
Structure Type Central impression (central drum)
Gear Model 1.5mm
Heating Method Electric heating
Max Oven Temperature Max 80℃ (ambient temp 20℃)
Unwinder/Rewinder Core Core 3″
Max Unwinder/Rewinder Diameter 1000mm
Applicable Ink Solvent-based ink

* Custom specifications available upon request

More from Master Series
4 6 Color Central Drum Flexo Press For PP Woven Bag Printing

4 6 Color Central Drum Flexo Press For PP Woven Bag Printing

6 Colors · 150m/min · Non Woven

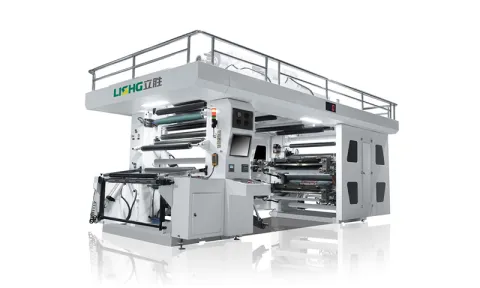

4 6 8 Color Central Drum Flexo Press For Shopping Bag Printing

4 6 8 Color Central Drum Flexo Press For Shopping Bag Printing

8 Colors · 150m/min · Paper

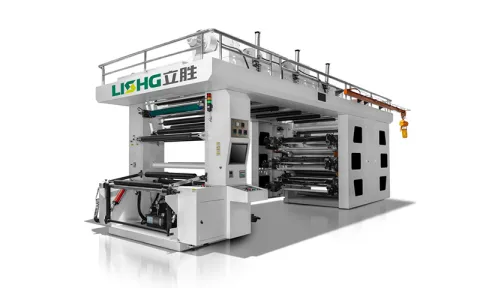

Central Drum Flexo Printing Machine For Thermal Paper Printing
