Max Speed
Printing
Max Width
Gearless Direct Drive

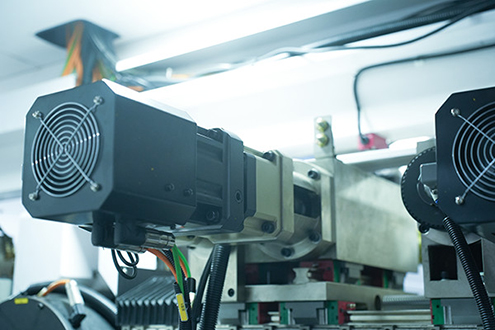

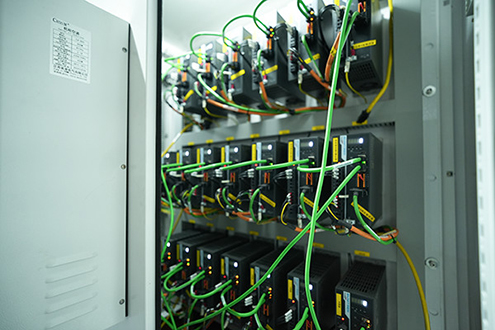

Independent servo motors for precise registration

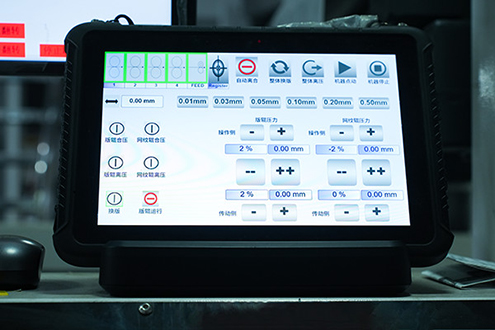

Auto Registration

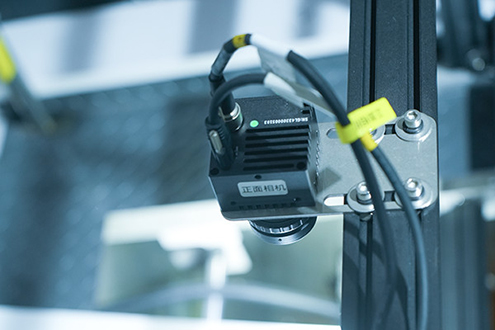

Camera-based perfect color alignment
Quick Job Change
Fast sleeve change minimizes downtime
Energy Efficient
Advanced drying reduces power consumption

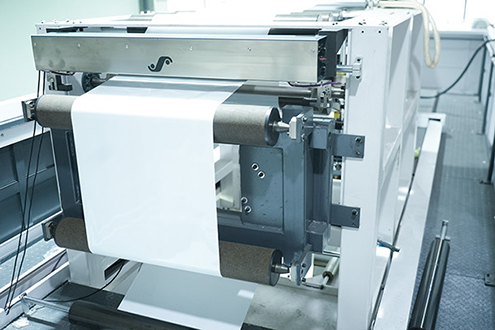

The Master Series YTE-81200 is a fully servo central impression (CI) satellite flexographic press, engineered for high-speed printing on kraft paper and other flexible paper substrates in roll form, up to 1200 mm wide.

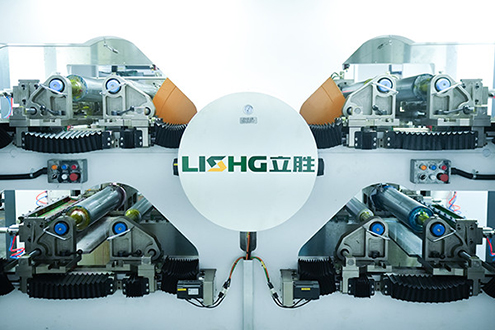

The central drum maintains controlled tension — essential on brown kraft, white kraft or food-grade kraft. Eight servo printing units, automatic register control and ±0.08 mm accuracy deliver stable, sharp print runs.
Up to 500 m/min on kraft paper in roll form — industrial productivity and precise graphics from light to medium basis weight.
Water-based inks recommended for paper. On-site installation, training and technical support for printers in North Africa.
The YTE-81200 covers the main paper markets in industrial flexographic printing:
| Parameter | Specification |
|---|---|
| Model | YTE-81200 |
| Maximum web width | 1200 mm |
| Number of colors | 8 colors |
| Maximum printing width | 1160 mm |
| Mechanical speed | 500 m/min |
| Maximum printing speed | 350 – 500 m/min (depending on substrate and print design) |
| Compatible materials | Flexible paper in roll form (kraft, coated, uncoated, food-grade) — not intended for rigid board or carton board |
| Kraft paper | Brown kraft, white kraft, food-grade kraft — 40 – 120 g/m² in roll form |
| Typical paper basis weight | 40 – 200 g/m² (flexible paper in roll form, depending on type and inks) |
| Maximum print length (repeat) | 400 – 800 mm |
| Print cylinder | Sleeve type |

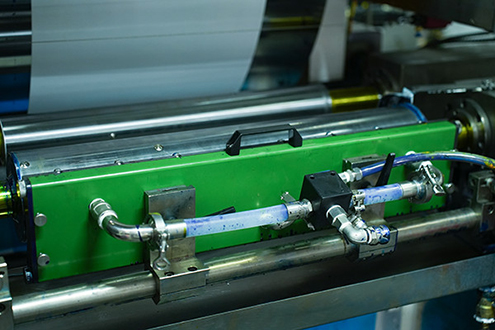

| Ceramic anilox roll | Sleeve type |

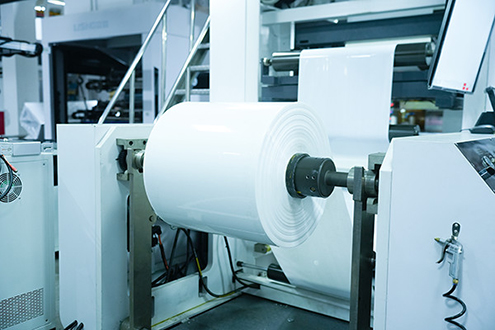

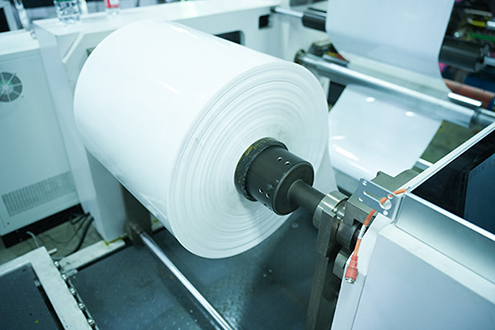

| Unwind / Rewind max. dia. | Φ800 mm |
| Double-sided tape thickness | 0.38 mm |
| Plate thickness | 1.7 mm / 1.14 mm / 2.84 mm / 2.28 mm — or custom |
| Registration accuracy | ±0.08 mm |
| Heating method | Electric heating |
| Ink | Water-based ink (recommended for paper) or solvent ink |
| Power supply | 380 V, 3-phase, 50 Hz / 60 Hz |
Print results on kraft paper and other paper substrates with the Master Series YTE-81200.
We support paper printers across North Africa from delivery through to full production.
Every project includes on-site installation, operator training and access to technical support and spare parts.
We regularly serve customers in the following countries:
Maghreb
Morocco Algeria Tunisia Libya Mauritania
Other North African countries
Egypt Sudan
A CI satellite flexographic press uses a central printing drum to deliver excellent web stability, high print accuracy and consistent quality for kraft paper and flexible packaging printing in roll form.
The CI flexographic press can print kraft paper (brown, white, food-grade), coated paper, uncoated paper and other paper substrates used in flexible packaging printing in roll form. Not suited to rigid board or offset printing.
This 8-color full servo flexographic press can reach high speed depending on the chosen configuration, paper type and customer requirements.
Full servo gearless technology improves print accuracy on paper, reduces mechanical errors, simplifies control of each printing unit and increases production stability on this CI flexographic press.
This CI flexographic press is suited to printing brown kraft, white kraft, food-grade kraft, coated and uncoated paper, as well as various roll-fed paper packaging substrates. Kraft: 40–120 g/m²; other flexible papers: up to 200 g/m².
Yes. We provide installation, commissioning, operator training and technical support for customers in Morocco, Algeria, Tunisia, Libya, Mauritania, Egypt and Sudan.
LISHG is a Chinese manufacturer specializing in CI flexographic presses, offering high-precision printing solutions for kraft paper and flexible packaging for the packaging industry.
